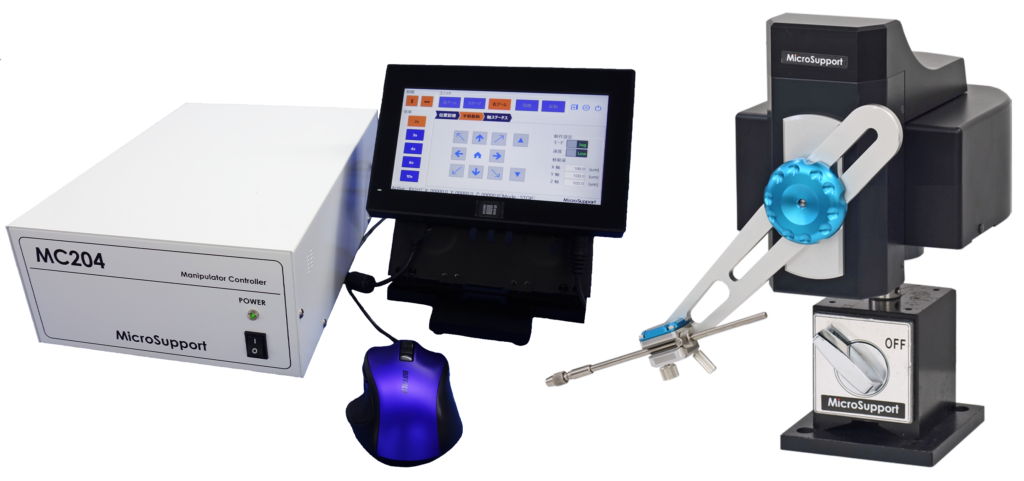

Stand-alone Micromanipulator
Description
Seamless hand-operated feel with just a PC mouse click
Quick Pro Features
- Effortless tasks without fatigue: Utilize XYZ three-axis operation with a PC mouse for precise and smooth movements
- Seamless integration: Easily set up the system alongside stereomicroscopes and metallurgical microscopes, eliminating the need for a PC
- Enhanced capabilities: Achieve precise cutting with our “Milling Pro” attachment (MIL-1) and versatile handling with our “Micro Tweezers” (MTW-1).
- Customizable operations: Optimize work by freely combining right and left-handed operation based on the task’s purpose and frequency
Video
Specification
| Manipulators | X-axis：20mm Y-axis：20mm Z-axis：30mm The tool handle(φ4mm) can be clamped. |
| Stand(Manipulators) | Magnet stand With steel plate(100ｘ100 mm) ※Please consult about other fixation methods. |
| Electric XY-stage | X-axis：100mm Y-axis：50mm |
| User interface controller | 5 Speed adjustment of four stages 10 Position memory function Jog-drive or Incremental-drive function PC-mouse operation |
| Power supply | AC100-230V 50/60Hz |
| Power dissipation | more than 350VA |
Line-up
| QP-3RH | Right arm set |
| QP-3LH | Left arm set |
| QP-3RLH | Right & Left arms |
| QP-3RLH-EXY | Right & Left arms, Electric XY-stage |
