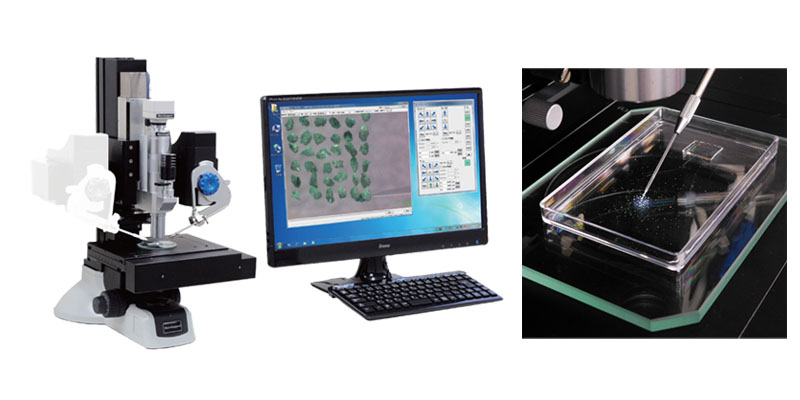

Automated sorting/collection of microscopic substances

• This system utilizes image/position analysis technology to automate the sorting, collection, and accumulation of minerals and other small particles with efficiency and precision
• Empowered by advanced image analysis technology, this system can automatically determine extraction conditions for dispersed microparticles, sort them, and move them to designated locations with precision
• Through Deep Learning AI-based image extraction, detectability of objects can be improved
• Facilitates the automation of sorting and accumulation, previously done by brutal force approach

【Microscope】

• • Optical Magnification: 1.4 – 15x
  • Motorized Zoom: Zoom Ratio 11x
  • Working Distance: 45.6mm
  • Motorized XY Stage: Stroke 100 x 50mm
  • Illumination: Selectable LED reflected and transmitted, spot, ring, etc.
  • Camera: 1.3 Megapixel CMOS digital camera

【Software】

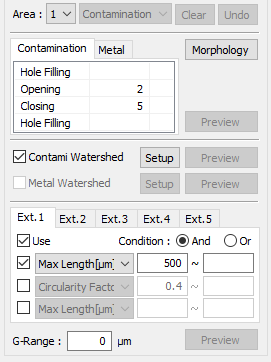

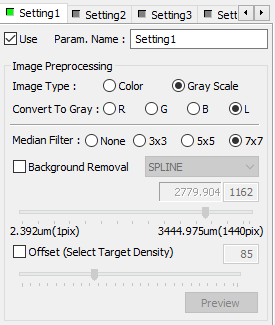

• • Image analysis/image extraction/mapping/report
  • Stage/focus/zoom/manipulator control/pump solenoid valve control
  • Automatic sample extraction
  • Image saving
  • Scale/crosshair display


【Sample Collection Function】

• • Electric micro manipulator (one-handed): Stroke X20mm Y20mm Z30mm
  • Suction tool: Selectable micropipette inner diameter 20-100μm
  • Vacuum suction pump with solenoid valve

【Control Unit】

• • Dedicated PC Windows 10
  • Motor controller x 2
  • 21.5-color LCD monitor

*Specifications are subject to change without notice.

■Automatic imaging of sample area to classify particles

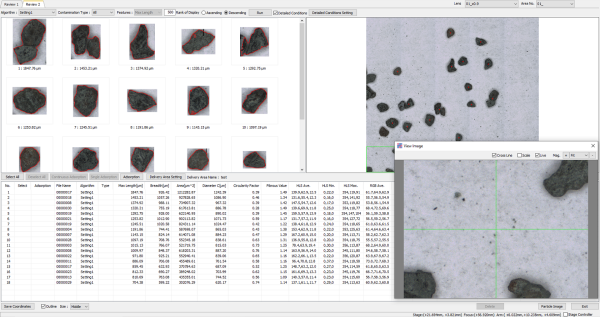

■Confirmation and editing of results

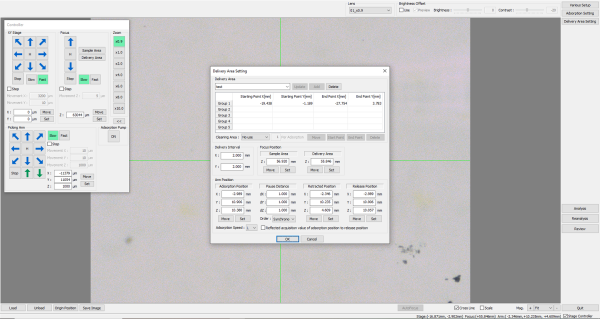

■Easy collection set-up

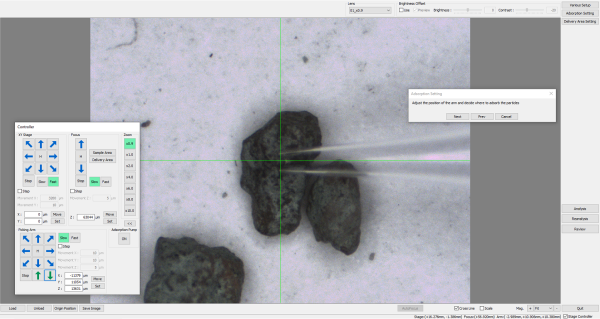

■Automatic collection
